Coxdome Polycarbonate skylight Manual + 150mm Upstand
Click Tabs Below To Reveal More Information

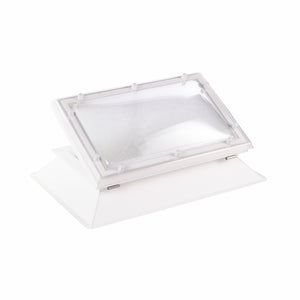

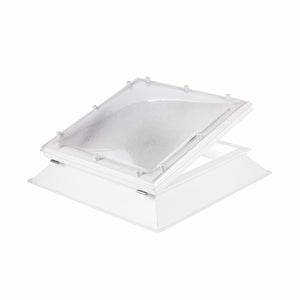

The COXDOME Classic Range manual opening polycarbonate dome skylights for flat roofs are manufactured to the highest standard with double or triple glazing. As standard they are supplied with a 150mm PVC-u upstand. The upstand is thermally broken and manufactured from PVC-u plastic profiles which ensures thermal efficiency and prevents condensation.

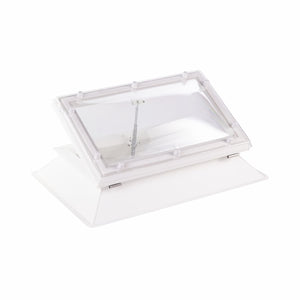

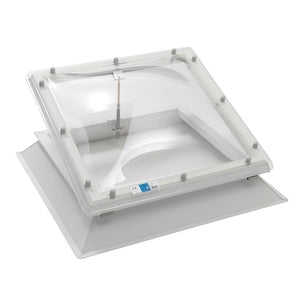

The COXDOME Classic manual opening rooflight is supplied with a spindle gear to be operated from below and using a winding pole which is supplied. The maximum opening is around 300 mm.
COXDOME Classic Range polycarbonate domes for flat roofs features a unique design that provides easy installation, as well as high performance.
Key Benefits:
- Double, triple or quadruple skins available for high performance
- Clear, diffused or opal glazing
- High security fixings as standard
- PVC-u upstand
- Suitable for flat roofs, including single ply, GRP, hot melt, asphalt, liquid and lead
- Manual opening
- Winding pole included
Performance:
- U Value 2.7 Double Skin / Sound Reduction 20dB
- U Value 1.7 Triple Skin / Sound Reduction 22dB
- U Value 1.4 Quadruple Skin / Sound Reduction 23dB
- U Value 1.8 150mm PVC-u upstand
- CE Marking according to EN 1873
- Class B Non-Fragile, ACR(M)001 Soft Body Tested
- 3 mm polycarbonate impact resistant glazing
- B-s1-d0 Fire Classification according to BS EN15301:1 2007
The size ordered on the website for this product would be the same size you need to make your structural opening/roof hole size. For example, if you order a 1000mm X 1000mm dome rooflight from the website you would need to make your structural opening 1000mm x 1000mm. The visible rooflight daylight size would be 800x800mm due to the splayed upstand supplied. The daylight size will be 200mm smaller than the Rooflight size as shown on the table below.
The image below shows the roof structure with the upstand and rooflight installed.
The data sheet for the Coxdome classic range rooflights can be found on the downloadable link below. The data sheet includes various
options, please ensure this is reviewed based on the options selected on our website drop down menu on this product page.
FAQs
-How Do I Open this Coxdome Manual Skylight?
Each unit is fitted with a spindle gear, which is designed to be operated from below with a winding pole (also supplied). All you need to do is attach the pole and wind the gear until the skylight is fully open. To close it, simply wind the gear in the other direction.
Can I Order a Coxdome Polycarbonate Skylight Manual With Privacy Glass?
If privacy is an important consideration, you can order the Coxdome Skylight Manual with opal or diffused glazing, whichever you prefer. Both types of glazing will still allow a generous amount of natural light into your home, whilst ensuring that you cannot be observed from outside.
Why Choose a Domed Rooflight?
For some people, the choice is a purely aesthetic one – they simply happen to prefer the appearance of curved glazing over a flat pane of glass. For others, it is the extra daylight that domed rooflights allow to penetrate into the space below, thanks to the way in which they bend the sun’s rays. For others still, it is the fact that rain, sleet and snow simply slide off the domed glazing, ensuring a clear view of the sky above in all types of weather conditions.
How Quickly Can the Coxdome Polycarbonate Skylight Manual Be Installed?
For a professional handyman or an experienced DIYer, it should be quite a simple process, which can be completed in just a few hours. If you are not sure whether you are capable of installing it without outside assistance, we recommend hiring a local expert instead, just to be on the safe side.
Why Might I Want to Install a Manual Opening Skylight Rather Than a Fixed Unit?
There are two main reasons that you may wish to consider installing manual skylights rather than ones that cannot be opened and closed:
- Ventilation – Whenever you are in need of more fresh air, you can simply grab the winding pole and open your new skylights.
- Heat and Smoke Exhaust – In the event of a fire, opening your skylights will help to exhaust the heat and smoke. However, under no circumstances should you compromise your own safety by stopping to open them in an emergency.
If you would like to increase the flow of air around your property and bolster your fire defences, the Coxdome Polycarbonate Skylight Manual is an excellent choice.
Lead time for this product is 2-3 working days. Please ensure labour is on site to take delivery and sign for the product.
Please ensure sizes ordered and specifications are correct as this product is made to order and cannot be returned.
