Glass Juliet Balcony (BFIX)
Click Tabs Below To Reveal More Information
The button fix Glass Juliet Balcony Kits offers an incredibly adaptable Juliet balcony solution, ensuring unobstructed views. With vertical glass profiles, the view remains undisturbed.
Glass Juliet balcony Benefits:
- Amplify natural lighting
- Cut down on lighting costs
- Generate the perception of spaciousness
- Economical and uncomplicated installation compared to traditional balconies
- Cultivate a feeling of being connected to nature
Glass Juliet Balcony Purpose?
Glass Juliet balconies, not intended for sitting or walking, function primarily as aesthetic enhancements, delivering captivating visual effects whether observed from within or outside a property. Internally, they brighten rooms, enriching the atmosphere and optimizing space. Externally, they emulate traditional balconies, augmenting the property's allure and visual appeal.
Key Features of the Frameless Glass Juliet Balcony:
- Offers safety fall protection for Juliet Balconies
- Supports widths up to 2600mm
- Compatible with a range of glass thicknesses up to 21.5mm
- Provides quick and easy mounting
- Streamlines and speeds up installation
- Achieves an almost invisible Juliet balcony with clear views, facilitated by button fix stand offs

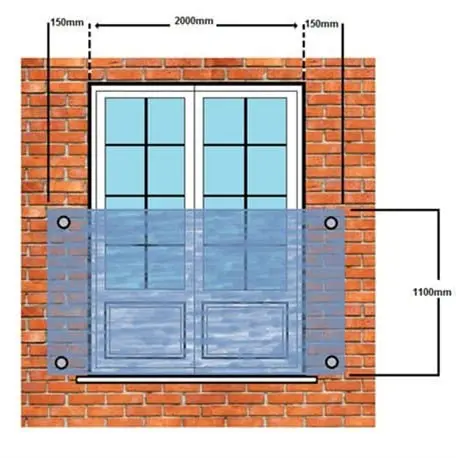

Measure the structural opening size which is 2000mm on the example below:
If the glass Juliet balcony is being fitted to brick, add an additional 300mm to the structural opening size which will make the glass overhang 150mm on each side.

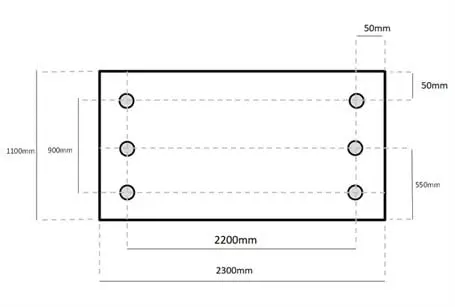

The overall width of the glass in this example will be 2300mm wide with 2200mm fixing centres as shown below. Please note the below is an EXAMPLE size only, you must review the sizes and hole positions on the image next to the drop down menu size you select where the price is displayed.
If the glass Juliet balcony is being fitted to a dormer loft with a timber structure and tiles, we would need to know the measurements from the centre of the timber post support on the right side to the centre of the timber post support on the left side. If the centre to centre measurements of the timber posts are 2200mm then glass Juliet balcony size above would work.
Fitting
You will need to purchase m10 rods to fix the balcony which are available at most builder’s merchants. The round stand-off brackets we supply with the balcony screw directly onto the m10 rods. M10 rods and 2-part resin will be required if fixing into brick/concrete or m10 rods, nut and washer secured internally if fixing into wood. It is solely your responsibility to provide accurate dimensions, sizes cannot be changed once manufacturing commences. We can provide simulated loading calculations for the glass. All fixings are supplied with standard 10mm back spacers which allow the glass to be off set from the wall/timber post by 10mm. Bigger back spacers can be purchased at additional cost.
- Toughened Laminated Glass supplied with 4 or 6 round stand-off fixings which are compatible with M10 rods.
FAQs
-Standard sizes can be produced and delivered within 7-14 working days in the London/M25 and surrounding region. Delivery for this product is restricted to certain parts of the UK, with lead times potentially extending by a few days in other areas. On-site labour will need to be arranged during delivery to unload from the vehicle, as the driver arrives alone and is not insured for indoor offloading. Third-party transport services operate in each area on specific days of the week, with advance notice provided for delivery dates and a time slot between 7am to 6pm. It is not recommended to arrange equipment and installation until the item has been delivered.
