Polycarbonate Dome Only Roof Lights - Mardome Reflex

Quantity

All prices are subject to 20% vat

This Item is Made To Order

Maximum quantity available reached.

£20 Nationwide Delivery Charge

Thermally-efficient glass

Warranty

Reduced risk of condensation

Easy-Fit

Made to Measure

Key Features

  • UK mainland delivery
  • Fast delivery
  • latest design avoids cold spots and minimises the risk of condensation
  • Great U values
  • Available in Single Double & Triple Skins
  • custom made sizes at extra cost
  • Tamper Proof Fixings Supplied as standard

Click Tabs Below To Reveal More Information

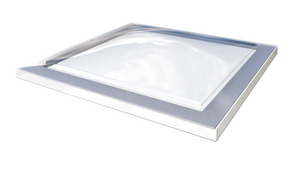

Mardome Reflex polycarbonate ‘glazing only’ dome rooflights are intended for refurbishment projects on flat roofs of all modern building types to provide natural light. This is a low-rise ‘glazing only’ dome with flexible fixing positions designed specifically for the challenges of roofing refurbishment projects.

Manufactured from Marlon FSX Longlife polycarbonate, this glazing unit is up to 200 times stronger than glass. The high resistance to breakage and adverse weather conditions means Mardome Reflex is very safe and reliable

This rooflight is designed to fit directly on a weathered builders upstand/kerb 150mm high and ideally 75mm wide but this product also works well on custom width upstands. Single, double and triple skin options are available to purchase. Clear, Opal and patterned finishes are available.

This polycarbonate dome is supplied undrilled with self-adhesive foam sealant tape weathertight washers and cover plugs. Supplied with undrilled fixing flanges provides flexibility on site for screwing to existing builders upstands.

Mardome rooflight are designed and manufactured in the UK.

Please see fitting instructions below and PDF at the bottom of this page and product data sheet.

This product fits to an existing kerb. 70mm or 100mm wide fixing flange which is supplied undrilled, for effective, custom fitting.

The Mardome Reflex dome only unit fits directly on to the builders upstand. If your external upstand size with finished roofling material is 1200mm x 1200mm then you would need to buy the 1200mm x 1200mm unit from the drop down menu on our website. The unit supplied has a built in tolerance to allow for small differences with the kerb or uneven roofing material as shown below.

Acceptable tolerance:

  • 70mm flange option = dome size +18/-60mm
  • 100mm flange option = dome size +18/-120mm

The above tolerances demonstrate if you purchase a 900mm by 900mm size from our drop down menu, this would be the size shown above of your external upstand width. As an example, if you selected the 70mm wide flange option this would work even if the external kerb dimensions were between 918mm to 840mm.

Glazing details:

*Centre pane U-value is a measure of the thermal efficiency of the glazing type.

Part L Building Regulations require a U-value of at least 2.2W/m2K: Brett Martin Daylight Systems recommend the use of at least triple skin rooflights in all applications.

Shape:

Choice of low rise dome or pyramid outer shape providing a contemporary external appearance

Tint:

The table below shows the light transmission properties of the Reflex polycarbonate rooflight.

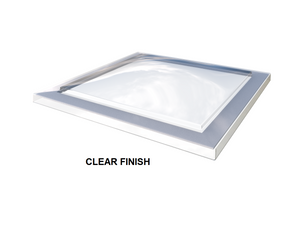

Clear - high visibility

Maximum light transmission

Maximum clarity of vision of views and objects through the dome

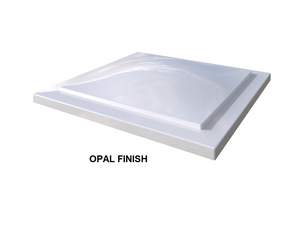

Opal - diffused light and solar control

Combines privacy with high levels of diffused light transmission

Prevents solar glare and reduces solar heat gain

Impairs vision of views and objects through the dome

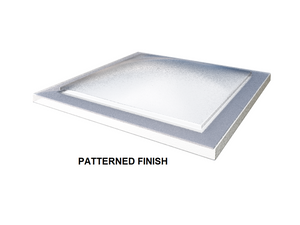

Patterned - privacy

Combines privacy with high levels of light transmission

Diffused daylight

Impairs vision of views and objects through the dome

Bronze - solar control

Reduces solar glare and heat gain

Provides a lower light transmission

WARRANTY

A 10 year manufacturers warranty is supplied.

Lead time for the sizes below are 2-3 working days for standard sizes with 70mm flange. Lead time with a 100mm flange will be 7 working days.



All sizes below are on a 2-3 working day lead time. For all other sizes, lead time will be on application, usually 3-7 working days.

450x450, 600x600m, 750x750, 900x600, 900x750, 900x900, 1050x600, 1050x750, 1050x1050, 1200x600, 1200x900, 1200x1200, 1350x1050, 1350x1350, 1500x1050, 1500x1500, 1800x900, 1800x1200, 1800x1800



Labour need to be on site to sign for and off load the product from the vehicle. The driver from the transport company is not insured to deliver inside the property.

Please Note lead time to Ireland will be longer than the standard lead time above.
