High thermal performance
Clip-on features - fast to fit
No visible fixings
Simple neat design
Made to Measure
- UK mainland delivery
- Fast delivery
- Great U values
- Sleek, contemporary inside and out
- Available in Single Double, Triple Skins and Quad skins
- Many sizes available from 600x600mm up to 1800x1800mm
- Various dome finishes available
- Option to purchase Multiwall PVC kerb
- Manually operated with a pole to open
Click Tabs Below To Reveal More Information

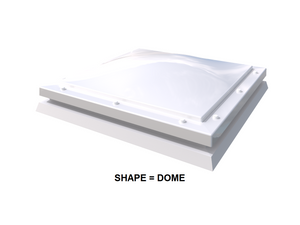

Mardome Trade Dome Manual Hinged Vent Rooflight are available in sizes a range of sizes. Polycarbonate dome available in a huge range of sizes and options to satisfy any requirement with a choice of finishes and glazing types. The rooflight is opened manually by an operating pole that is used to wind the rooflight open and closed by hand.
The Mardome Trade Manual Hinged Skylight is a stylish, aerodynamically designed unit that is ideal for both commercial and residential properties. Supplied with a 10-year warranty, it is manufactured to extremely tight tolerances, here in the United Kingdom. It is BBA approved, BRE Globally Verified and tested to Class B Non-Fragile standards so you can be sure that it is fit for purpose. It is available both as a package, with a splayed uPVC upstand, or in a dome-only format, for installation on an existing builder’s upstand of the correct dimensions.
Mardome Manual Hinged Skylight Key Benefits
This beautifully designed manual hinged skylight has a number of attractive benefits to offer, including all of the following:
- Additional Daylight – It is possible to introduce around a third more natural daylight with strategically installed manual hinged skylights.
- Extra Ventilation – With operable skylights, you can add more ventilation to your building whenever you wish. Each unit is supplied with an easy-to-use winding pole specifically for this purpose.
- UV-Resistant Polycarbonate Skins – The UV-resistant skins ensure minimal colour fading, even after extended periods of exposure to the elements.
- Designed to Fit Directly to Builders Kerb – The PVC kerb that is supplied with this skylight can easily be fitted to an existing timber builder's kerb, simplifying the installation process considerably.
- Fire Resistant: Fully Compliant With BS 476 and BS EN 13501-1 Fire Ratings – This manual hinged skylight has been engineered to comply with relevant fire standards and is regularly tested to ensure continuing compliance.
- Manual Opening and Closing for Speed and Simplicity – Manual opening skylights such as this model are supplied with a winding pole that can be attached to the spindle gear in order to open and close them at any time.
While some building owners may prefer electrically operated skylights, manually operated models also have much to recommend them. In the event of a power outage, you are still able to open and close them as desired, and the installation procedure is somewhat easier.
Glazing Choices for the Mardome Manual Hinged Skylight
The Mardome Manual Hinged Skylight can be ordered with double, triple, or quadruple glazing, depending on your requirements. You can also choose from clear, opal or patterned glazing when placing your order. For fitting, delivery and specification details, please see the relevant tabs. If you require any more details, you are welcome to contact us at any time.
You can find installation guidelines below. A downloadable PDF link is also available at the bottom of this page along with a product data sheet to provide extra assistance.
If your product size doesn't match our sizes displayed, we offer to assess options to progress if you deem necessary. Standard sizes are available in 150mm increments starting at 600x600mm and go up to 1800x1800mm.
Measuring Guide for fitting to builders upstand
Take external builders upstand measurement
Fixed / unvented domes = dome size +20/-20mm
Opening / vented domes = dome size +40/-20mm
As an example, if fitting on a builder’s upstand, the width should be 75mm and height of the upstand should be 150mm high. If you purchase a 900mm by 900mm from the drop-down menu on our website your external timber size as shown in red above (Measure here) should be 900mm by 900mm.
Measuring Guide for domes with PVC kerb
Take the measurement of the internal roof opening
Acceptable tolerance = dome size +20/-30mm
For example, the drop-down menu on our website allows you to select the measurement you desire. If you purchase with a 150mm or 300mm high upstand and you purchase a 900x900mm from our drop down menu then your structural opening size will be 900x900mm as shown in red above. The timber size as shown in red above (Measure here) should be 900mm by 900mm.
*Centre pane U-value is a measure of the thermal efficiency of the glazing type.
#Ud-value is a measure of the thermal efficiency of the whole rooflight (calculated in accordance with NARM Technical Document NTD2).
~Glass glazing option is not available with the access hatch option and limits other opening options depending on size.
Part L Building Regulations require a U-value of at least 2.2W/m2K: Brett Martin Daylight Systems recommend the use of at least triple skin rooflights in all applications.
To see the light transmission properties of the polycarbonate rooflight, look at the below table

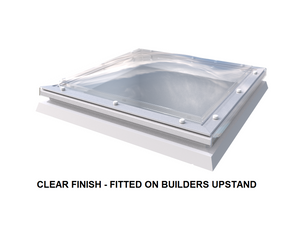

Clear - high visibility
Light transmission maximised
Clarity of vision of views and objects through the dome maximised

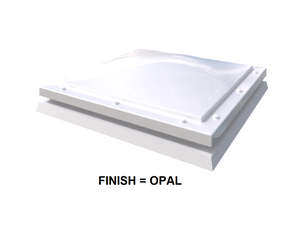

Opal - diffused light and solar control
Privacy in tandem with elevated levels of diffused light transmission
Reduced solar heat gain and no solar glare
Restricts sight of views and materials through the dome

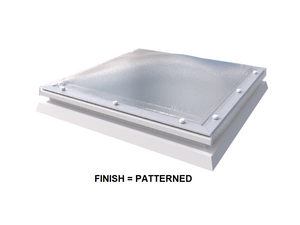

Patterned - privacy
Privacy fused with elevated levels of light transmission
Impairs vision of sights and objects through the dome structure
Builders upstand (opening / vented)
Dome is supplied complete with uPVC frame that fixes to top of builders upstand and houses any opening / ventilation equipment

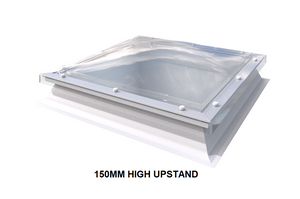

For mounting at roof surface level, providing 150mm of waterproofing height (exact kerb profile varies with specification)

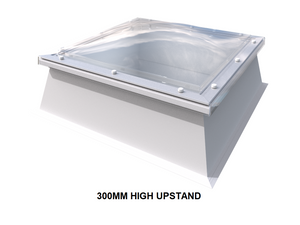

For mounting typically below roof surface level, providing 300mm of height for insulation and waterproofing
2 manually operated hit and miss trickle vents providing combined 8400mm² equivalent area ventilation. Please note trickle vents cannot be supplied with 450mm by 450mm size.
A 10 year manufacturers warranty is supplied.
Mardome manual hinged dome rooflights are designed to be installed in all types of flat roofs on modern residential and commercial buildings. The low profile design ensures they will blend in with all types of exterior décor and surroundings, providing additional natural light and ventilation effectively and unobtrusively. For standard sizes, we offer a 2-3 working day delivery service to all mainland UK addresses. For custom sizes, the lead time is approximately 3-7 working days.
Easy to Install and Easy to Use Manual Hinged Dome Rooflights
These rooflights have been designed to be both easy to install and easy to use. Because they are manually operated, there is no need for any electrical installation work: the domes can be opened and closed with the supplied winding rods. The concealed hinges operate smoothly, ensuring that any able-bodied adult can open the domes quickly and with a minimum of effort.
Keep Your Property Comfortable in All Seasons

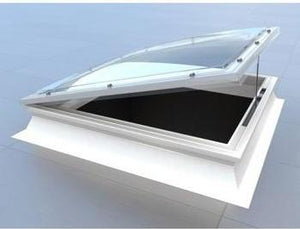

Once installed, manual hinged dome rooflights make it easier to control the indoor climate in any type of space with a flat roof. If the atmosphere should become stuffy and unpleasant, simply open the domes and you will increase the ventilation in the space significantly. Each dome rises approximately 30 cm when opened fully, ensuring an ample supply of fresh air whenever it is needed. When the weather turns cold, you will be pleased that you opted for a triple-layer polycarbonate rooflight, with a centre-pane U-value of 1.8 W/m²K. This rating is well within the guidelines laid out in Part L of the Building Regulations in the UK, which cover the requirements for energy-efficient spaces in commercial and residential properties.
Safe and Durable Manual Hinged Dome Rooflights
The outer dome of the rooflights is fabricated from 3 mm-thick, impact-resistant polycarbonate sheeting with a UV coating on both sides. This helps to reduce the possibility of accidental damage and minimises the amount of ultraviolet light that passes through. The fixings that are used to attach the rooflights to the roof are concealed inside tough security caps, providing outstanding protection against vandalism and theft. Furthermore, the risk of condensation is mitigated through the separation of the glazing skins across the entire span of the dome.
What size do I order?
The dome rooflight size to order is completely dependent on whether this is being fitted onto a builder’s upstand or whether a upstand was being purchased with the rooflight. If an upstand is being purchased with the rooflight then the size to order is the structural opening size. If this rooflight is being fitted onto a builder’s upstand made on site, then the size to order is your external kerb to kerb measurement size.
How do I open the rooflight?

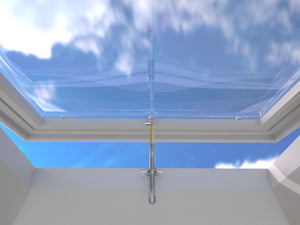

This rooflight will allow you select the extra option of having a manual pole to open the unit with. This manual pole will engage with the worm gear, and you would open and close the skylight using this method.
What is the ventilation option for?
The ventilation option is usually selected for areas where in there is little or no air ventilation within the room. The ventilation is also selected in areas of higher humidity.
Select your desired options and place your order now. And don’t forget, we are always here to help if you require any more information or personal assistance with your purchase.
Lead time for this product is 2-3 working days for the sizes below. Lead time for all other sizes will be on application, other sizes will be between 3-7 working days but this depends workload. 450×450, 600x600m, 750×750, 900×600, 900×750, 900×900, 1050×600, 1050×750, 1050×1050, 1200×600, 1200×900, 1200×1200, 1350×1050, 1350×1350, 1500×1050, 1500×1500, 1800×900, 1800×1200, 1800×1800 .
Please note that the transport company is not responsible for delivering inside the property. They are not insured to do this so you will need to ensure an appropriate person is designated and on site to offload the product out of the vehicle once the driver arrives.
We recommend arranging equipment and installation after the item has been delivered. Deliveries are all day deliveries; a text message will be sent with the delivery date to the mobile number provided with the order. Please Note lead time to Ireland will be longer than the standard lead time above.
